SPECIFICATION
- Model: HE-RT-3K
- Power: 3000VA/3000W
- Weight: 27.34 Kg
- Battery Type: Sealed Lead Acid Maintenance Free
- Dimensions: 438 x 88 x 610 (2U) mm
- Input: 80-300 VAC
- Output: 208/220/230/240 V AC ± 1% (Selectable)
- Charging Time: About 6 Hours
- USB Port: Yes

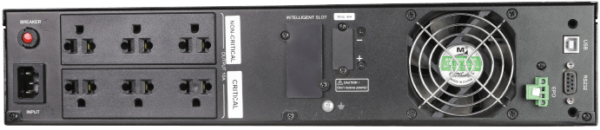

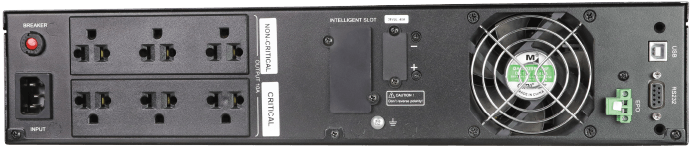

- Outlets: 6 slots
FEATURES
- DSP Control
- 1.0 Output Power Factor
- Wide Input Range 80-300 VAC
- High Efficiency Mode (ECO)
- True online double conversion Topology
- Input THDI <3%
- Output THDv <1% linear load
- IGBT convertion component
- High frequency PWM
- Easy Battery Replacement
- Normal Mode : Control V./ freq. sync. to line
- ECO Mode : via bypass within Programablerange
- Freq. Mode : Control both V. & F.
- Start-able without battery (AC Start)
- OVCD or Outlet Programmable Management
- Recharge to 90% battery capacity within 4 hours
- Mimic LCD Display
- Free Power Management Software
- Optional SNMP & Relay Cards
